Dependable & User-Friendly Design

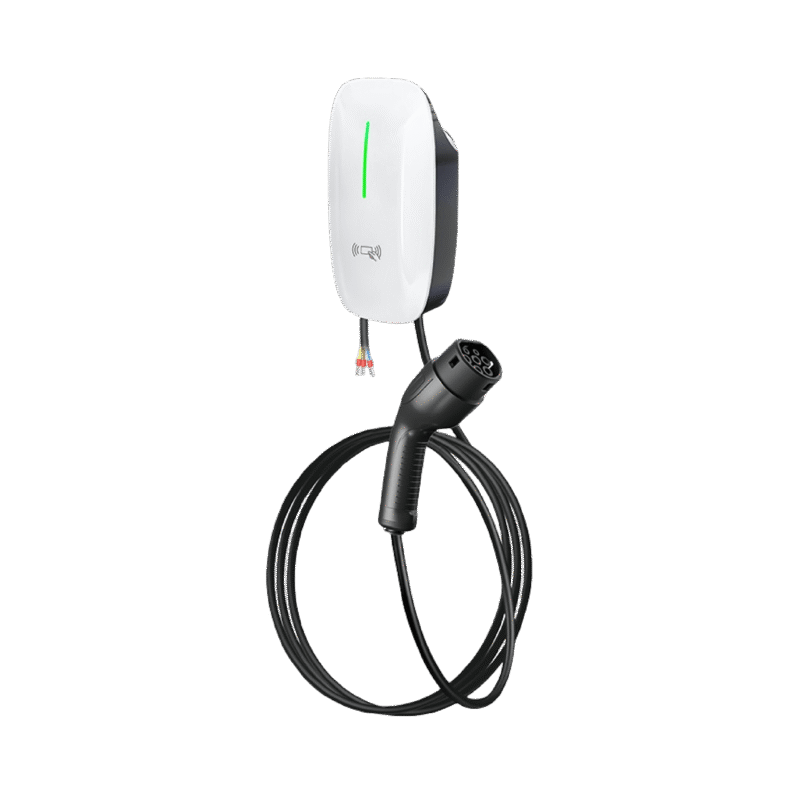

Compact, High-Performance AC 7kW Charging Station Tailored for Hyundai EVs in Home and Small Business Environments: The Mekel 7kW Charging Station for Hyundai Electric Vehicle is a robust, space-saving solution crafted for seamless integration with all Hyundai electric vehicle models, such as the IONIQ 5, IONIQ 6, KONA Electric, and SANTA FE Plug-in Hybrid. Perfect for residential garages, apartment complexes, or light commercial settings, it offers Hyundai-compatible connectors like Type 2, CCS, and NACS for global compatibility. Adhering to IEC 61851-1 and IEC 62196-2 standards, this charger ensures consistent, high-efficiency charging optimized for Hyundai’s sophisticated battery technology, supporting enhanced energy delivery and prolonged driving range.
Technical Specifications of 7kW Charging Station for Hyundai Electric Vehicles
| Input/Output Voltage | 230Vac +15% |
| Maximum Charging Current | 32A(fine-tuned for Hyundai’s Level 2 charging requirements) |
| Operating Frequency | 50Hz |
| Operating Temperature | -25°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Enclosure Rating | IP65(dust-proof and resistant to water jets, ideal for outdoor Hyundai charging) |
| Installation Options | Versatile wall or pedestal mounting |
| Dimensions | 186 mm x 354 mm x 111 mm |
| Connectivity | HCI Bluetooth, Wi-Fi, and 4G |
| Certification | CE compliant |
Advanced Safety Features
Tailored for Hyundai EV owners, the 7kW Charging Station for Hyundai Electric Vehicles incorporate a robust set of protective mechanisms to ensure vehicle safety:
- Over/Under-Voltage Safeguards
- Overcurrent Protection
- Temperature Monitoring with Auto-Shutdown (Triggers at 80°C, resumes at 60°C)
- Leakage Current Detection
- Relay Bonding Safety System
- Emergency Stop Function
Intelligent Charging Modes for Hyundai EVs
- Flexible Charging Activation (App or RFID)
- Real-Time Thermal Monitoring to protect Hyundai battery systems
- Dynamic Current Adjustment to match Hyundai’s power requirements
- Charging Status Indicators:
Idle: Steady green
Connected: Flashing green
Charging: Flashing blue
Finished: Steady blue
Fault: Flashing red with error codes
Effortless, Secure Charging for Hyundai EVs
Simply plug 7kW Charging Station for Hyundai Electric Vehicles into your Hyundai EV, and it automatically begins power delivery, adapting to your vehicle’s specific needs. Its smart system syncs with compatible apps, enabling Hyundai owners to remotely monitor, pause, or stop charging, ensuring ease of use and optimal battery performance with minimal effort.
Easy Setup & Operation – Power Up Your Hyundai
Designed for straightforward installation, the 7kW Charging Station is ideal for Hyundai EV drivers. Whether mounted on a garage wall or set up as a freestanding pedestal outdoors, its IP65-rated, weatherproof enclosure guarantees durability in any setting while maintaining top charging performance.
Why Choose the Mekel 7kW Charging Station for Your Hyundai EV?
- Certified Safety: Comprehensive protective features for reliable, daily charging of Hyundai EVs.
- Smart Connectivity: Links to the “Homelife” app for remote control, enhancing Hyundai’s connected features.
- Minimalist Design: No screen, no complexity – a reliable, user-friendly solution for Hyundai home charging.
