Mekel 7-22kW Series Charging Station for BMW EVs

Home - Products - Mekel 7-22kW Series Charging Station for BMW EVs

BMW Charger, EV Charging Stations

Input/Output Voltage: 230Vac ±15%

Max Charging Current: 32A(optimized for BMW’s Level 2 charging requirements)

Operating Frequency: 50-60Hz

Operating Temperature Range: -20°C to +50°C

Storage Temperature Range: -45°C to +60°C.

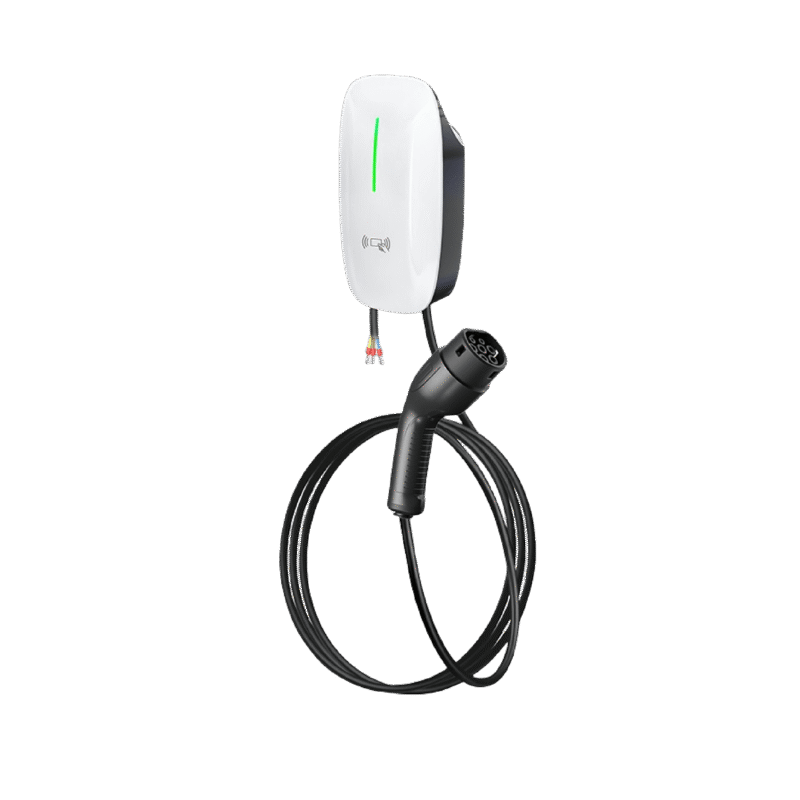

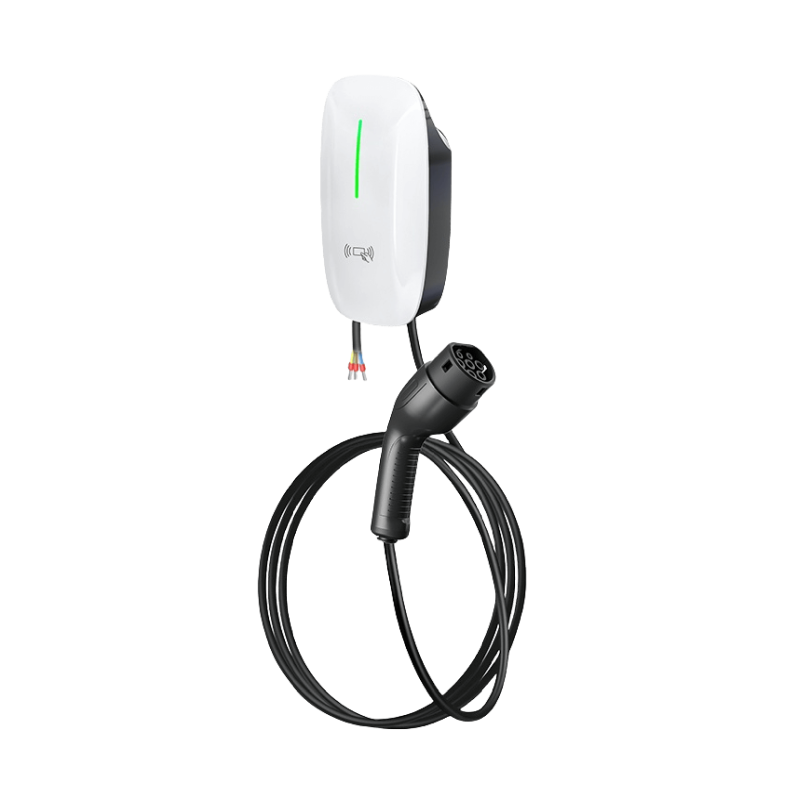

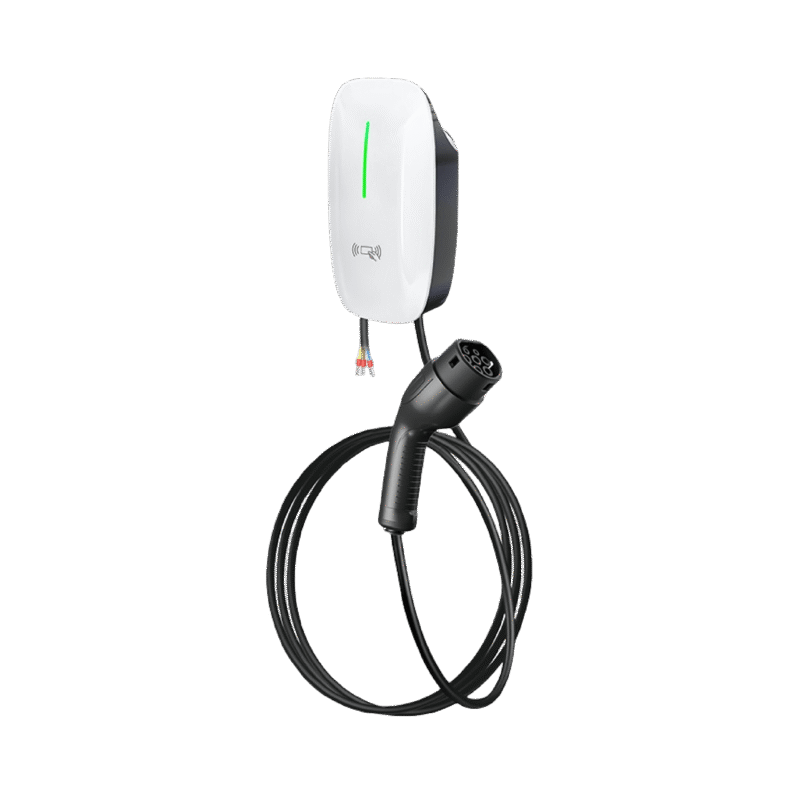

Mekel 7-22kW Series Charging Station for BMW EVs

Compact and Reliable Charging for BMW Owners in Homes and Residential Complexes: Mekel’s 7-22kW Series Charging Station for BMW EV is a sleek, high-performance solution crafted for seamless compatibility with BMW electric vehicles, including models like the i4, iX, i7, and iX2. Designed for home garages, apartment complexes, or small commercial settings, it features BMW-compatible Type 2 connectors (with Type 1 and NACS options available for global markets). Compliant with IEC 61851-1, IEC 61851-21-2, UL 2231, and UL 2594 standards, this charger ensures dependable, efficient charging tailored to BMW’s advanced battery systems, optimizing energy delivery and supporting extended driving range.

Why Choose Volt Series AC EV Charging Station?

Minimalist, BMW-Compatible Design:

Screen-free operation blends seamlessly with BMW’s sleek aesthetic, perfect for home charging.

Certified Charging Station Safety

Comprehensive protections ensure safe, reliable charging for BMW’s sophisticated EV systems.

Smart Connectivity:

The “Homelife” app complements BMW’s ConnectedDrive, offering remote control and charging optimization.

Built-in Multi-layered Safety Features

Effortless and Secure Charging for BMW EVs

Quick Installation & Reliable Operation for BMW Owners

Parameter of Mekel 7-22kW Series Charging Station for BMW EVs

Input/Output Voltage	230Vac +15%
Max Charging Current	32A
Operating Frequency	50-60Hz
Operating Temperature Range	-20°C to +50°C
Storage Temperature Range	-45°C to +60°C
Enclosure Rating	IP55 (weatherproof charging station for outdoor use)
Installation	Flexible wall-mounted or pedestal-style setup
Dimensions	196 mm x 320 mm x 97 mm
Connectivity	HCI Bluetooth, Wi-Fi, and 4G (for integration with VinFast’s app ecosystem)
Certification	CE compliant

Application

Public Use

Crucial for municipal and public charging network operators, the MEKEL Volt Series AC EV Charging Stations support global standards (Type 1, NACS, Type 2) and OCPP 1.6 compatibility, making them ideal for public deployment. With TUV, CE and UL certifications, robust safety protections, and power outputs from 7kW to 22kW, they ensure reliable, compliant operation across locations. These stations enhance infrastructure inclusivity, accommodate diverse EV models, and are built to withstand high-traffic use, future-proofing public charging networks.

Residential Use

Designed for home users, the MEKEL Volt Series AC EV Charging Stations offer simple plug-and-play setup and smart features via the “Homelife” app, enabling remote control and scheduled charging to optimize energy costs. Supporting power levels up to 22kW (3-phase, 240V) and compatible with multiple connector standards, they charge most EVs in 3–4 hours. Built-in protections including Type A+6mA DC leakage prevention and overcurrent defense deliver worry-free, safe daily charging for residential properties.

Commercial Use

Ideal for fleet hubs, hotels, and multi-unit facilities, the MEKEL Volt Series AC EV Charging Stations feature centralized monitoring and back-office integration for streamlined commercial management. With power outputs from 7kW to 22kW, RFID access control, and OCPP 1.6 compatibility, they support scalable deployment across multiple units and locations. Certified for safety and reliability, these stations ensure consistent performance, reduce operational complexity, and enhance service quality for businesses serving a diverse clientele.

FAQ

How long does 7-22kW Series Charging Station take to charge a BMW EV with the Mekel Chargers?

The 7-22kW Series Charging Station for BMW EVs typically fully charges BMW EVs, like the i4 or iX, in about 8 hours, making it ideal for overnight charging at homes or apartment complexes.

How do I choose between basic and smart charger models for my BMW EV?

Basic models suit BMW owners in areas with consistent electricity rates, offering simple plug-and-play functionality. Smart chargers provide advanced features like energy tracking, remote control via the “Homelife” app, and off-peak scheduling, ideal for BMW drivers seeking greater control or commercial applications.

Are Mekel 7-22kW Series Charging Station suitable for daily BMW EV use?

Yes, Mekel 7-22kW Series Charging Station for BMW EVs are built for durability and consistent daily charging of BMW EVs, provided your electrical system is properly configured and installed.
